High-pressure storage standard module & add-on module
Storage system | Operating pressure | Volume geometric | Number of vessels | Safety valve and pressure gauge | ||
| 330 bar | 365 bar | 420 bar | Litres |
|
|

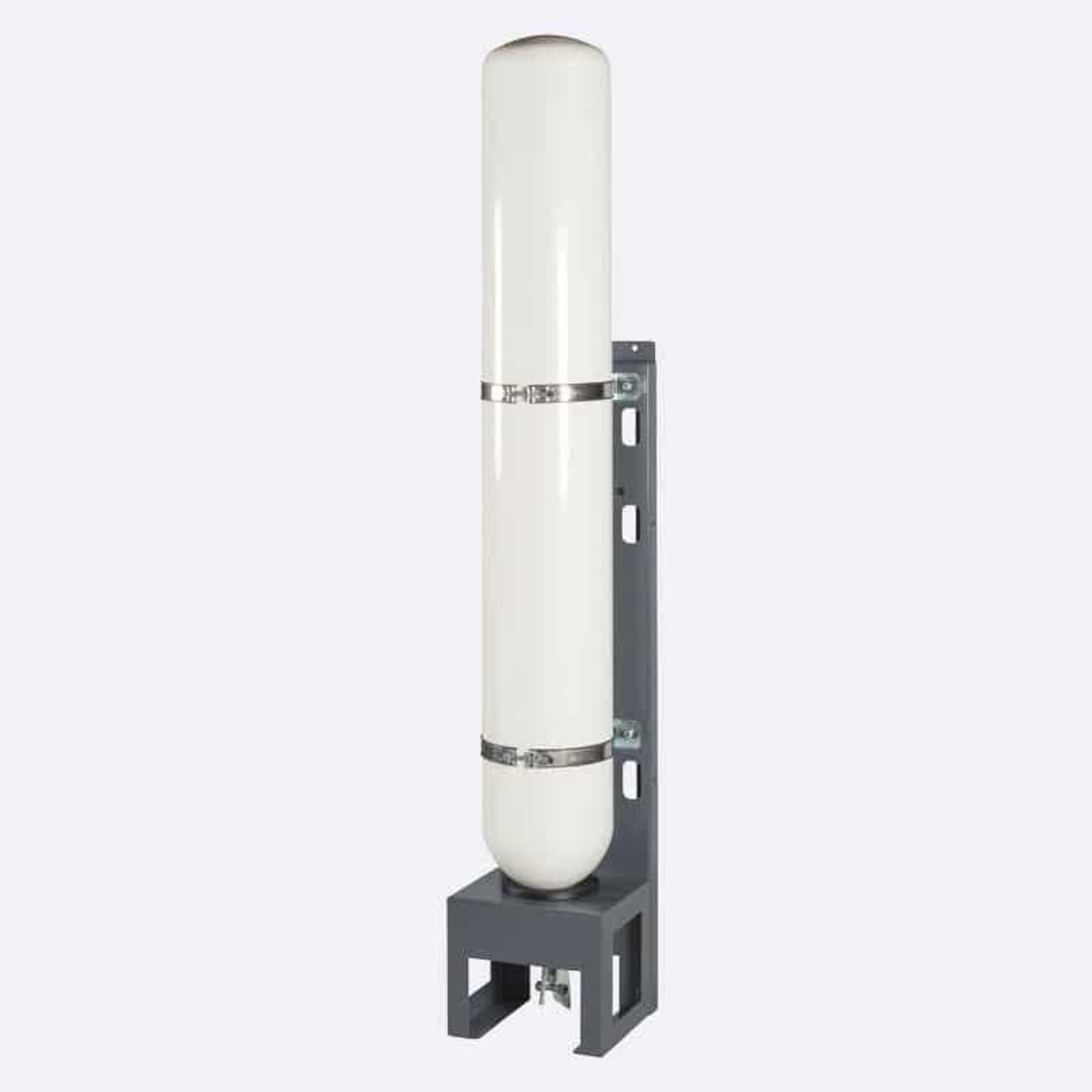

B50-S | – |
|
| 50 | 1 |
|
B50-A | – |
|
| 50 | 1 | – |
B80-S |
| – | – | 80 | 1 |
|
B80-A |
| – | – | 80 | 1 | – |

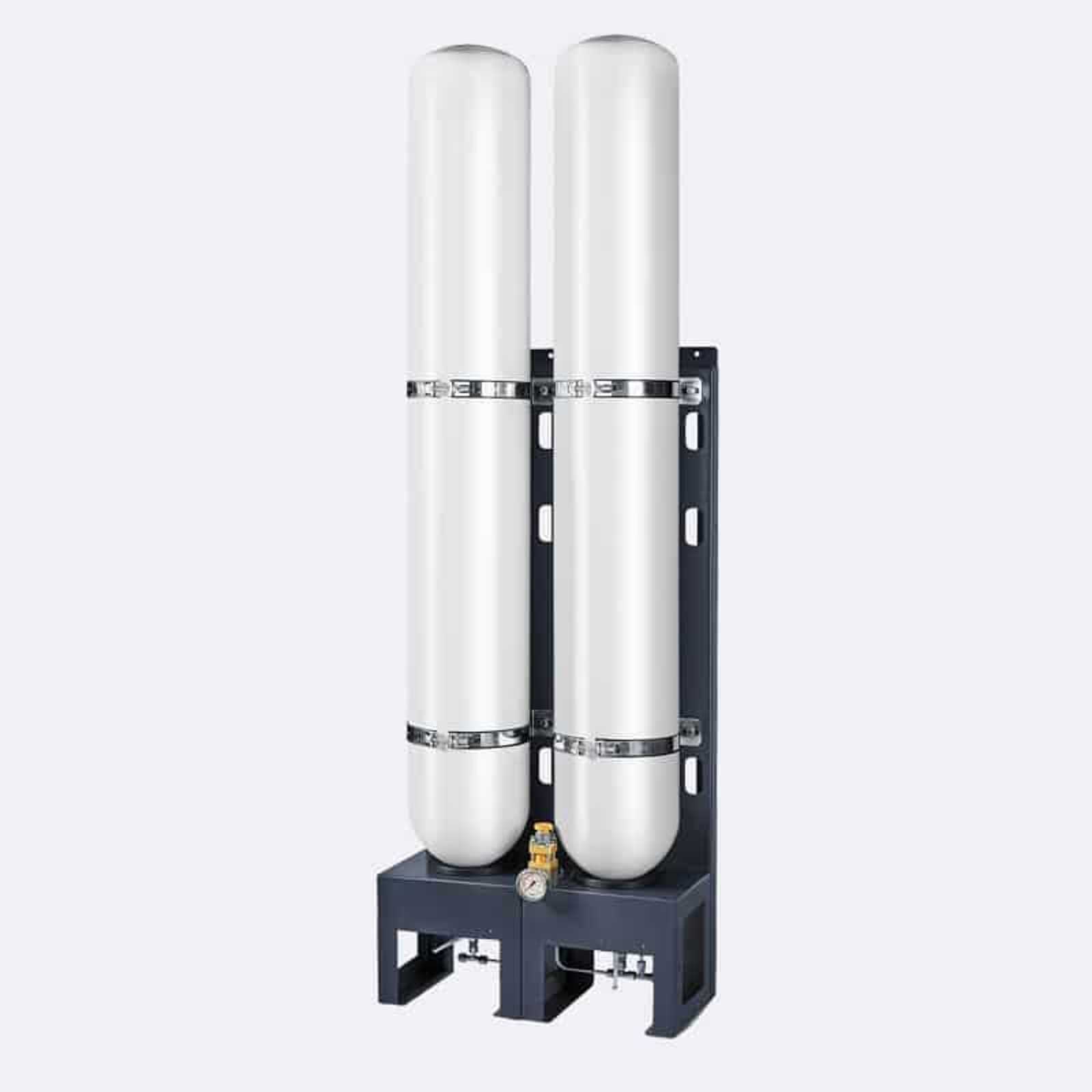

B100-S | – |
|
| 2 × 50 | 2 |
|
B100-A | – |
|
| 2 × 50 | 2 | – |
B160-S |
| – | – | 2 × 80 | 2 |
|
B160-A |
| – | – | 2 × 80 | 2 | – |
Storage system | Number of cylinders | Total volume geometric | Operating pressure | Design | ||
|
| Litres | bar | 1-rack | 2-rack | 3-rack |
B800 | 10 | 800 | 330 |
|
|
|
B960 | 12 | 960 | 330 |
|
|
|
B1920 | 24 | 1920 | 330 |
|
|
|
B2000 | 25 | 2000 | 330 |
|
|
|
B2400 | 30 | 2400 | 330 |
|
|
|
B2800 | 35 | 2800 | 330 |
|
|
|
B3360 | 42 | 3360 | 330 |
|
|
|
